Basic Specifications
Model:RB-SOL-KH100W
Light Source:LED Lamp
Material:Aluminum Alloy
Color Temp:Cool White
Power Range:30W-400W
Illumination:10h
Charging Time:8 Hours
IP Rating:IP65 / IP66
LED Efficiency:210lm/W
Voltage:12/24V

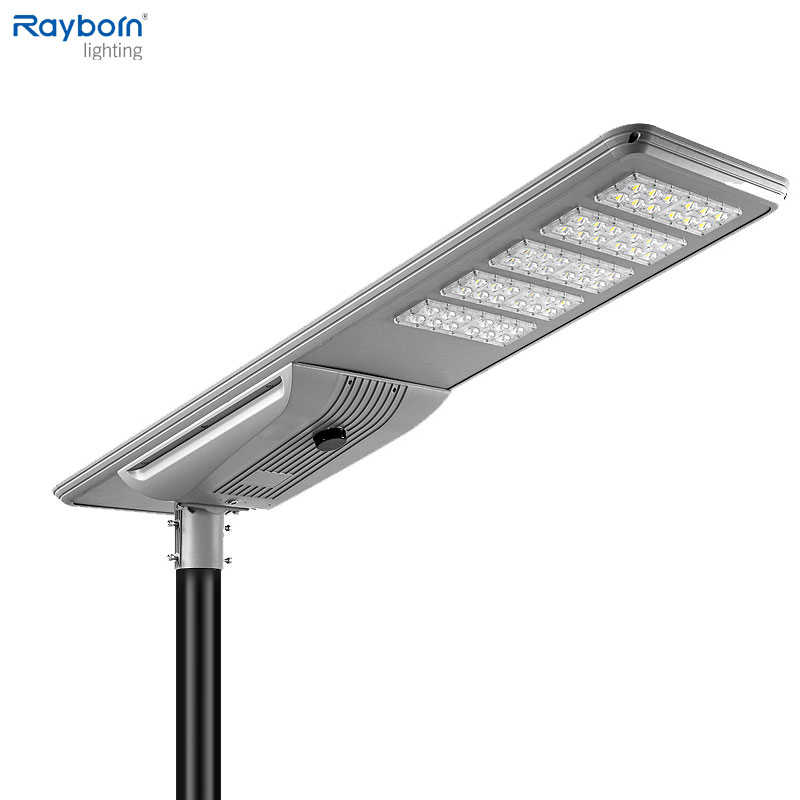

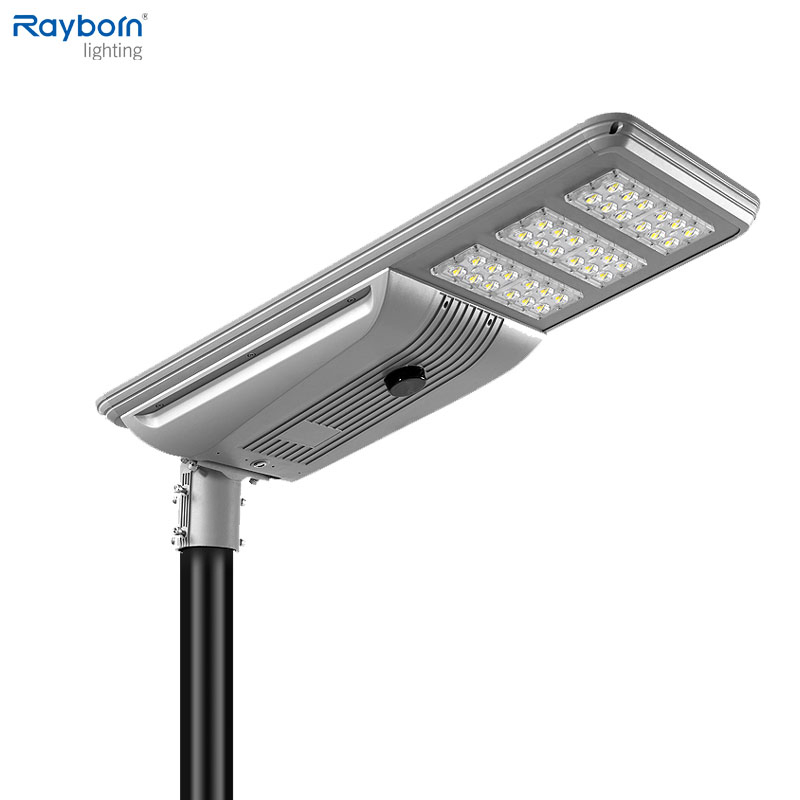

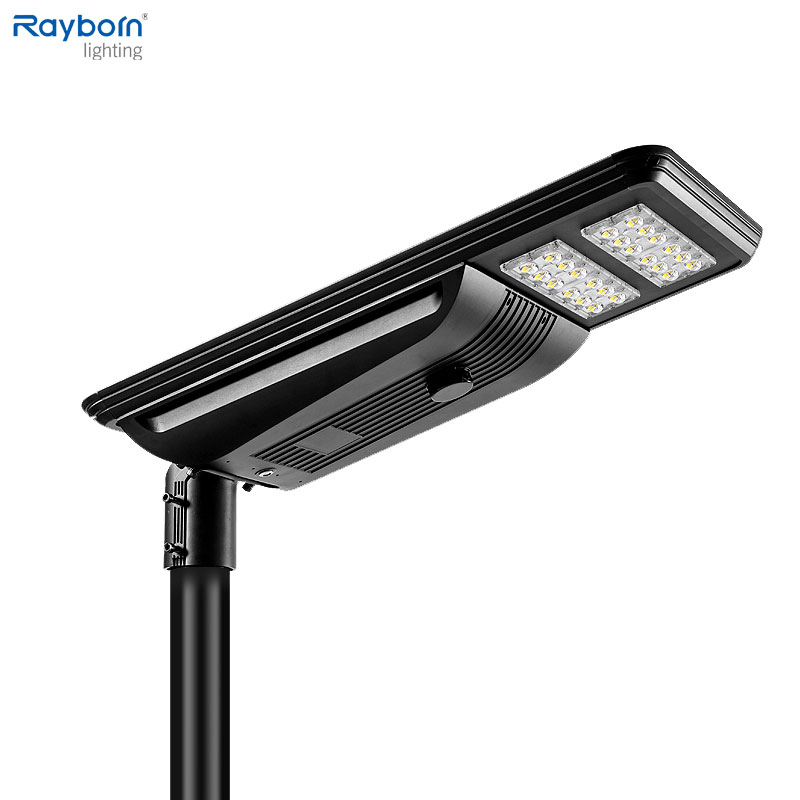

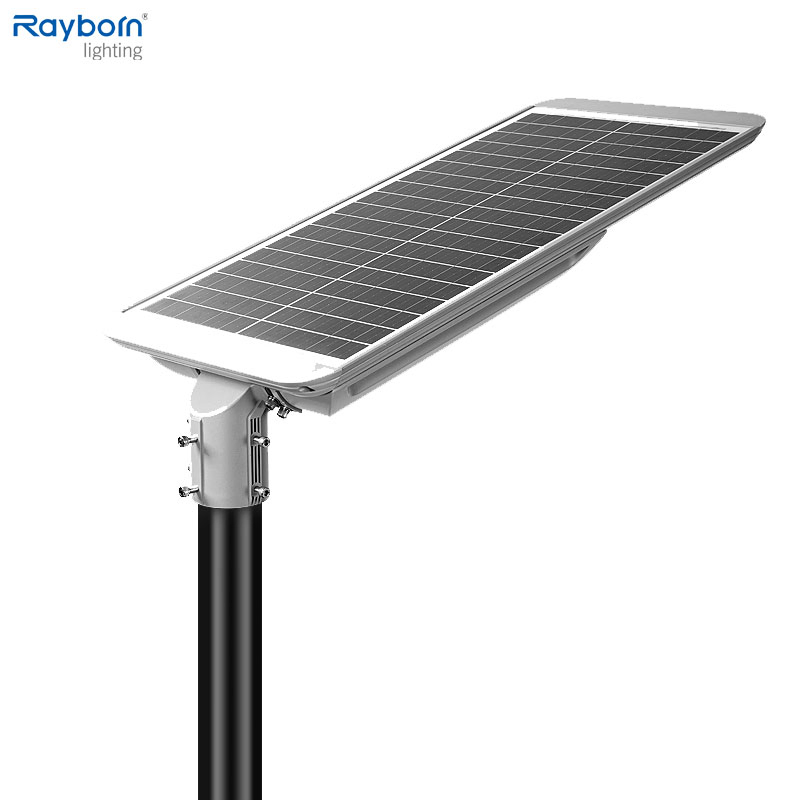

Integrated Solar Security Light

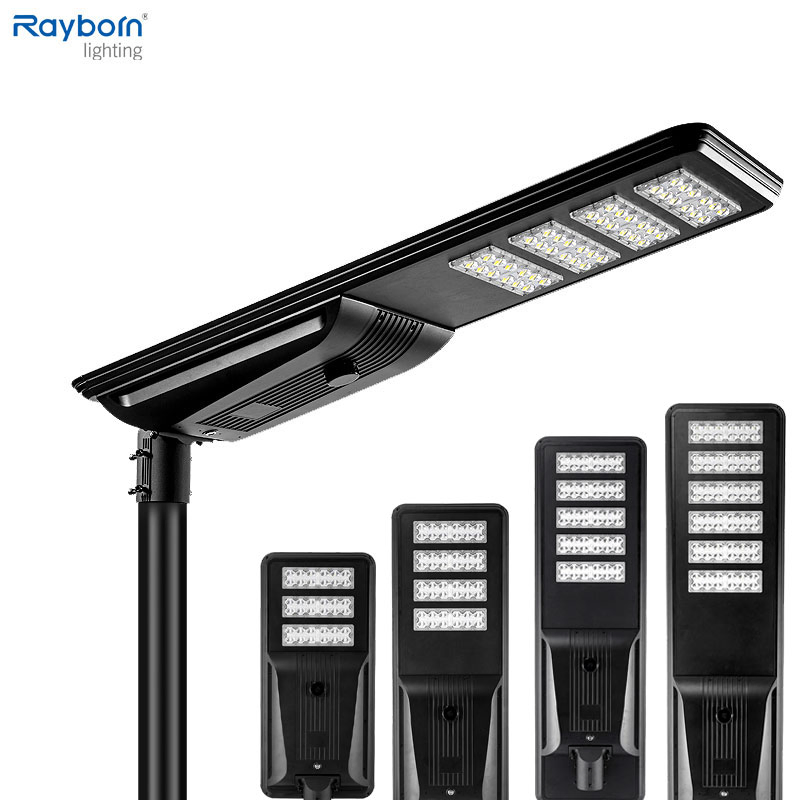

All in one Led Street Solar Security Lights with Motion Sensors
High Efficiency Motion Sensor IP65 Integrated Solar Street Light, suitable for Garden, Street, and Outdoor applications. Features include time control, waterproof design, and easy installation.
Technical Parameters
| Model |
30W |
60W |
80W |
100W |
120W |
| Solar Panel |
18V/50W |
18V/80W |
18V/105W |
18V/130W |
18V/150W |
| Battery (LiFePO4) |
231WH |
384Wh |
576Wh |
768Wh |
960Wh |
| Luminous Flux |
6050LM |
12000LM |
16000LM |
20000LM |
24000LM |
| LED Chips |
High efficiency SMD 3030 |
| Controller |
MPPT Controller |

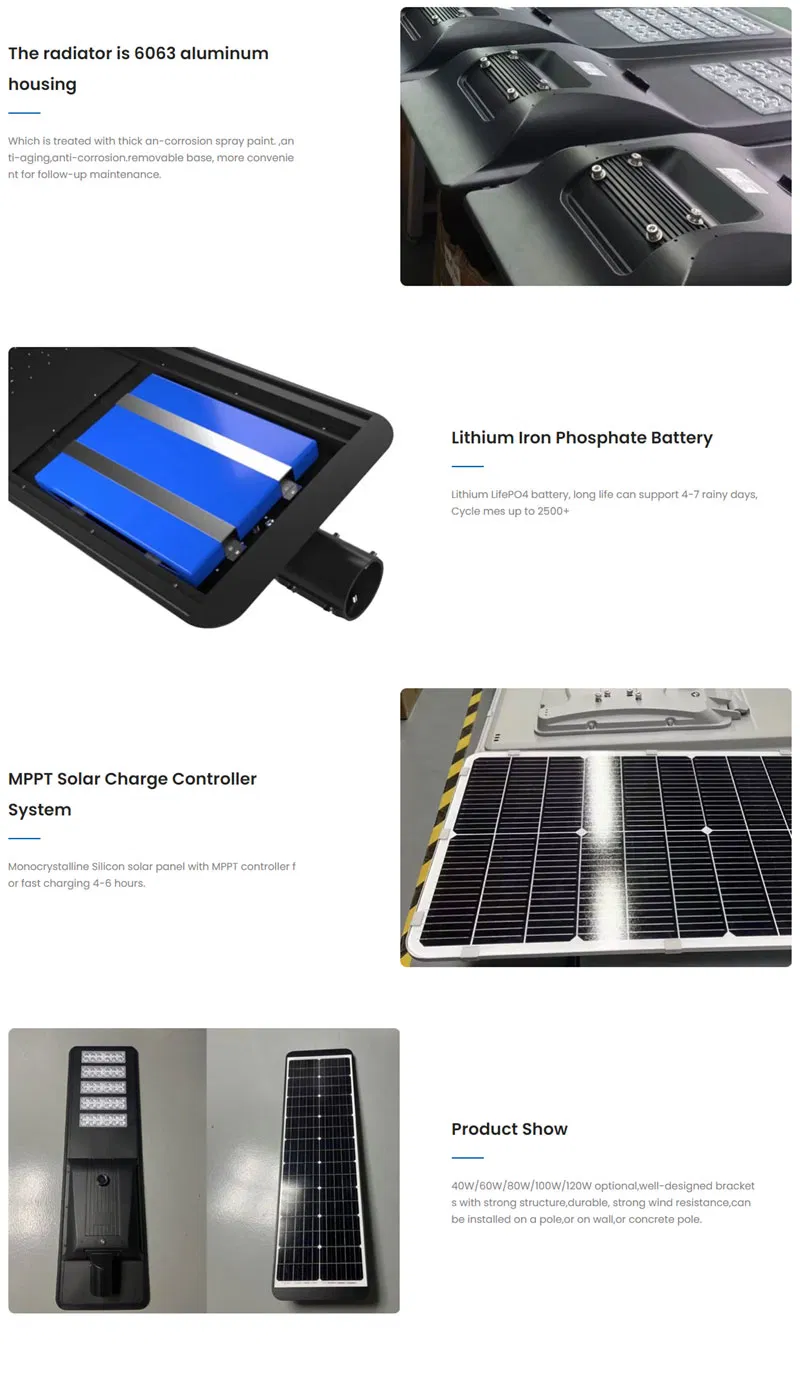

Key Features & Advantages
- High thermal conductivity 6063 aluminum radiator with anti-corrosion treatment.
- Removable battery design for convenient maintenance.
- High light transmittance PC lens (>90%).
- Intelligent control + Microwave induction + Segmented time control.
- Genuine imported chip lamp beads with low light decay.
- 3-5 rainy & cloudy days of backup power.
Installation Precautions
Note: Installation should be performed on sunny days to ensure the battery reaches full charge before first-night discharge.
Angle: A 15-degree angle for the solar board is recommended for optimal efficiency.
Environment: Avoid shadows from houses or trees to maximize power generation.

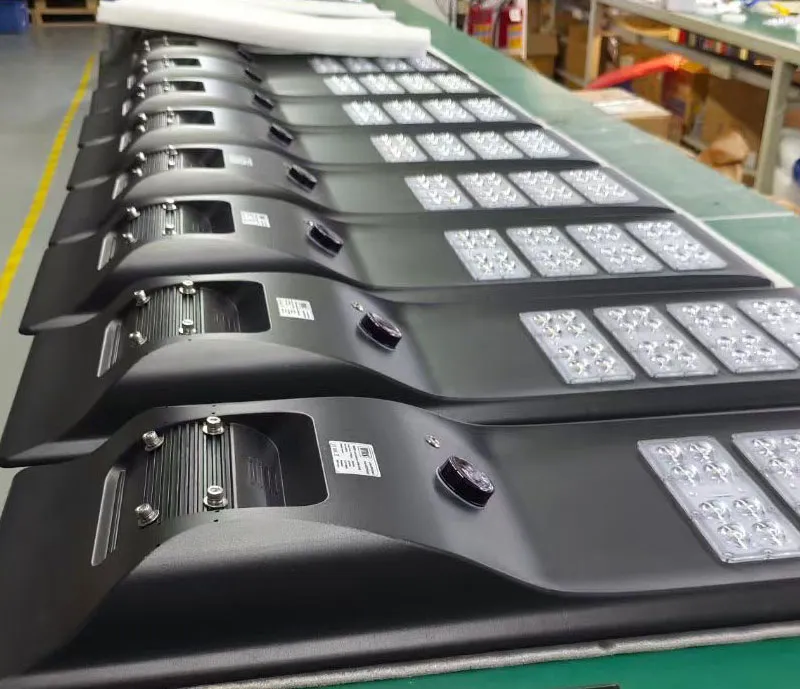

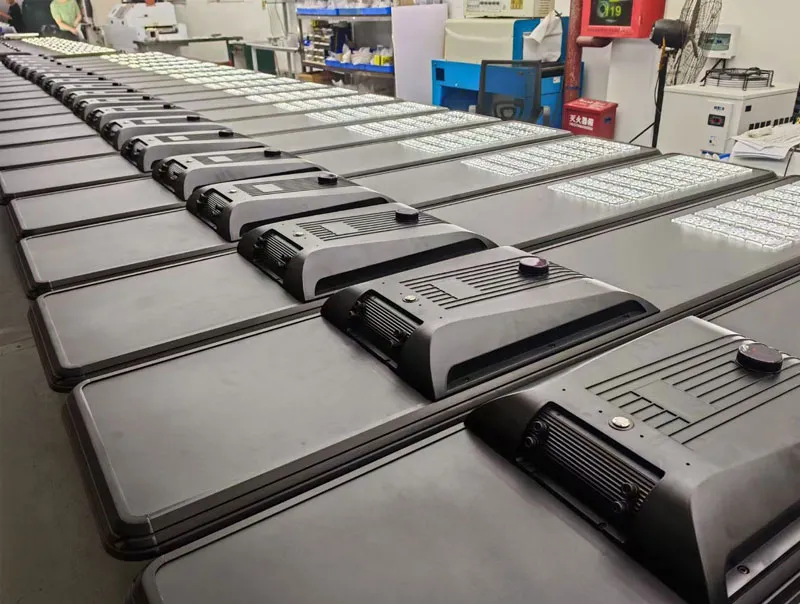

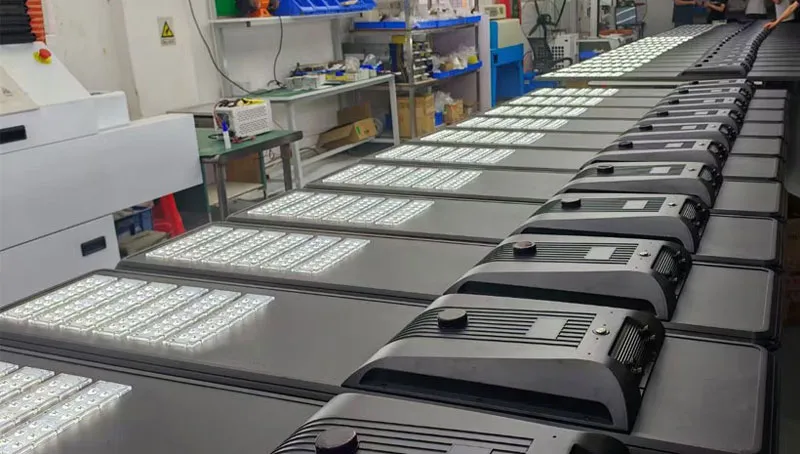

Quality Control & Aging Test
All units undergo 24-hour aging tests, including waterproof, high-voltage, and ground connection inspections. The defective rate is strictly controlled below 0.1%.

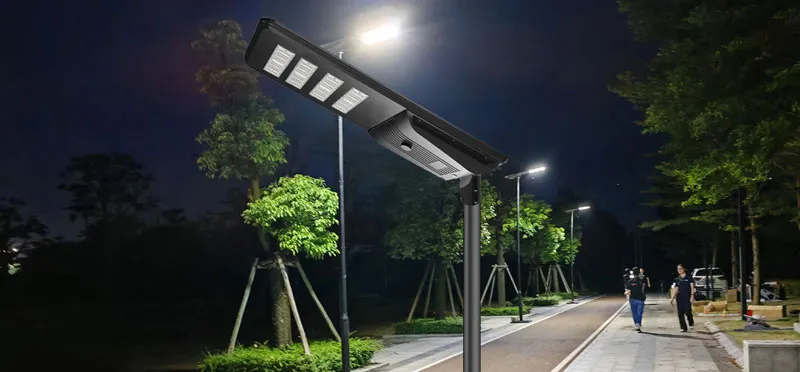

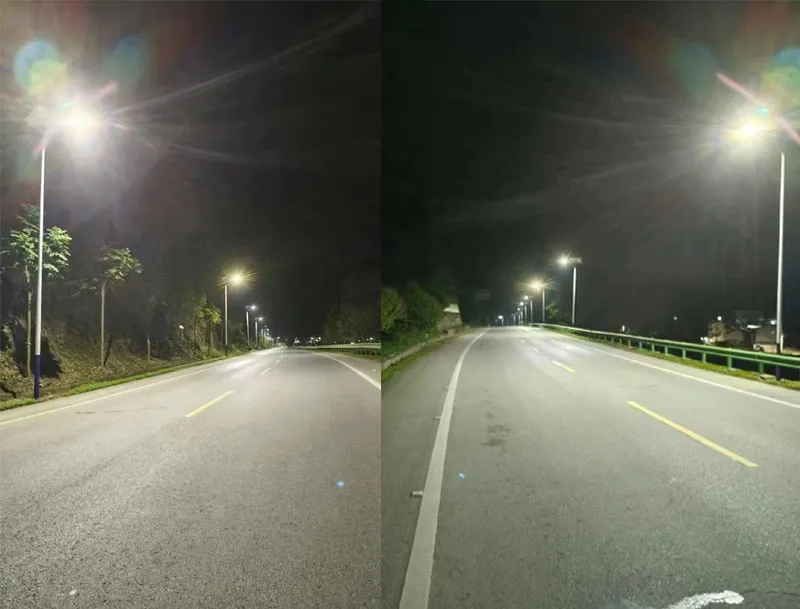

Applications
- Playground and Stadium lighting.
- Parking lots and Airports.
- Highways, Railways, and Tunnels.
- Bridges, Gardens, and Squares.
Production & Quality Standards
Factory operations are ISO9001:2000 certified, with products meeting CE, FCC, RoHS, and TUV standards to ensure reliable high-power LED performance.
Frequently Asked Questions
Q1: How long does the solar street light work at night?
A: The light provides over 10 hours of illumination and is designed to last 3-5 rainy or cloudy days on a full charge.
Q2: What is the waterproof rating of these lights?
A: These integrated solar lights are rated IP65/IP66, making them completely waterproof and suitable for harsh outdoor environments.
Q3: What is the lifespan and warranty?
A: The LEDs have a lifespan of approximately 50,000 hours, and the product comes with a standard 3-year warranty.
Q4: How does the motion sensor work?
A: It uses an intelligent microwave induction system to adjust brightness based on movement, saving energy when no one is around.
Q5: Can the battery be replaced?
A: Yes, the design features a removable battery, which makes maintenance and long-term use much more convenient.
Q6: What is the ideal installation height?
A: Depending on the wattage, the recommended height ranges from 5-6 meters for 30W units up to 15-18 meters for high-power 120W+ units.
