High-Efficiency Solar Street Light with Motion Sensor Technology

Customization:	Available
Light Source:	LED Lamp
Lamp Body Material:	Aluminum

Overview

PREMIUM ALL-IN-ONE SOLAR STREET LIGHT – SMART, DURABLE & EFFICIENT

Upgrade your outdoor lighting infrastructure with our advanced Integrated Solar Street Lamp. Merging a high-efficiency monocrystalline solar panel, a long-lasting LiFePO4 battery, and premium LED modules into a single, sleek unit, this product redefines convenience.

High-Efficiency Solar Street Light with Motion Sensor Technology

Model NO. GH-LKAS-150W

Light Type Solar

Color Temperature 2700-6500K

Power 150W

Technics Powder Coating Process

Illumination Time Preset Duration

Cell Type Lithium Iron Phosphate

Charging Time 4-6 H

IP Rating IP65

Voltage 12/24V

Luminous Efficacy 220lm/W

Production Capacity 50000 Pieces/Year

Product Description

Engineered for commercial and municipal applications, it features an MPPT intelligent controller and Motion Sensing technology to deliver reliable, high-brightness illumination even during cloudy days. With its tool-free maintenance design and robust aluminum housing, it is the ideal zero-wiring solution.

LONG-LIFE LIFEPO4 BATTERY

Utilizes premium Lithium Iron Phosphate technology known for thermal stability and high cycle life, ensuring dependable backup power during consecutive cloudy days.

SMART MPPT CHARGING

Built-in MPPT controller maximizes solar energy conversion efficiency. Motion sensors dynamically dim the light output when static to save maximum energy.

EASY INSTALLATION

Eliminates complex trenching or wiring completely. Tool-free access allows simple maintenance and prompt battery partition checks on-site.

INDUSTRIAL DURABILITY

Formed using Heavy-Duty Die-Cast Aluminum. Robust heat dissipation architecture guarantees operations in severe high and low temp parameters.

Technical Specifications

Parameter Item	Standard Specification Details

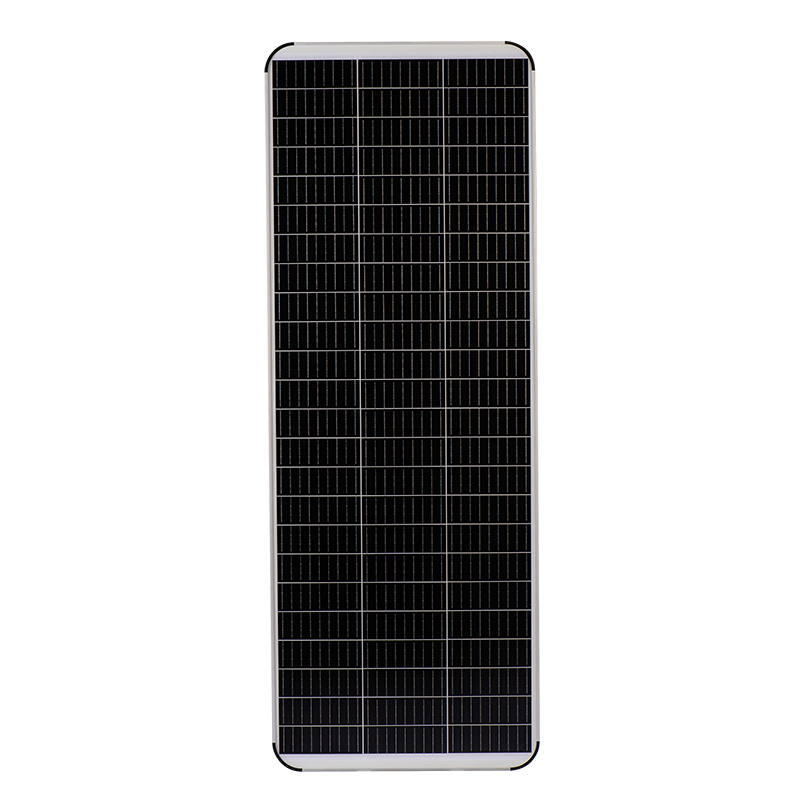

Solar Panel Type	Grade A Monocrystalline Silicon 18V/100W
Component Dimensions	15135784mm
Cycle Lifespan	3000 Cycles, SOH/80% (Est. 8 Years Service Life)
LED Configuration	SMD 5050, 140 Pieces
System Luminous Efficacy	220 lm/W
Optics Beam Angle	T2M / 160*80°
Correlated Color Temperature	2700-6500K Smart Adjust Selection
Minimum Charge Window	4-6 Effective Sunshine Hours
Operational Climate Range	-20°C to +65°C
Wet Weather Reserve	2-3 Consecutive Rainy Days Backup
Housing Ingress Level	IP65 Dust & Waterproof Rated
Dynamic Output Profile	Full Power 33000lm / Induction Save Mode 3300lm
Structural Material	AL6063 + ADC12 + 1060 Pure Grade Aluminum
Target Mounting Pole Fitment	60 / 76mm Diameter
System Controls Integrated	MPPT + Photoelectric Intelligent Control + Microwave Radar
Optimal Mounting Height Range	Recommended 12 - 13 Meters Vertical Elevation

Core Applications

Municipal & Rural Roadways

An ideal choice for main streets and residential lanes. Delivers grid-independent illumination, enhancing safety without expensive infrastructure investment.

Commercial Parking Lots

Perfect for commercial complexes. Integrated motion sensing saves overall operating budgets while delivering premium security lighting parameters.

Industrial Parks

Ideal for industrial yards and construction environments. Easily mountable structures skip wire layouts, saving substantial initial development time.

Suburban Main Highway Solar Pole Demonstration

Frequently Asked Questions

Q: What advantages do solar street lights offer over traditional grid-powered lights?

Solar street lights feature zero electricity operation, zero complex cabling requirements, and zero carbon emissions. They operate autonomously during power outages, drastically lowering ongoing utility overheads and shortening initial infrastructure rollout cycles.

Q: Do these lighting units continue to operate under overcast or stormy conditions?

Yes. Configured with monocrystalline panels paired to ultra-capacity LiFePO4 batteries, standard packages run comfortably for 2-3 consecutive overcast days. High-capacity custom profiles can extend backup power to 5-7 days under dark sky conditions.

Q: Can the operational brightness and time settings be customized?

Yes. The dynamic controller handles segmented timers (e.g., maximum output for initial busy road hours and scheduled dimmer stages later in the night) and features microwave proximity triggers to ramp illumination on activity detection.

Q: Is the system setup complex? Does it require highly specialized electricians?

No, setup is highly simplified. The system uses an integrated all-in-one approach. Installation simply requires securing the base foundation, hoisting the structural pole, and locking on the preset modules. No complicated cable grids are laid.

Q: What is the expected operating life of the core components?

Our monocrystalline solar panels are designed to last 10-25 years. The premium Grade A LiFePO4 battery pack handles 3000 cycles (lasting 8+ years), the high-power LED arrays run for 5-10 years, and the control unit provides 5-8 years of reliable performance.

Q: Is the higher initial cost justified compared to standard grid setups?

Absolutely. The initial price premium is typically recovered within 2-3 years because there are no cabling construction fees or monthly electricity bills. Over the system's lifetime, total ownership costs are estimated to be only one-third of a conventional grid light.
