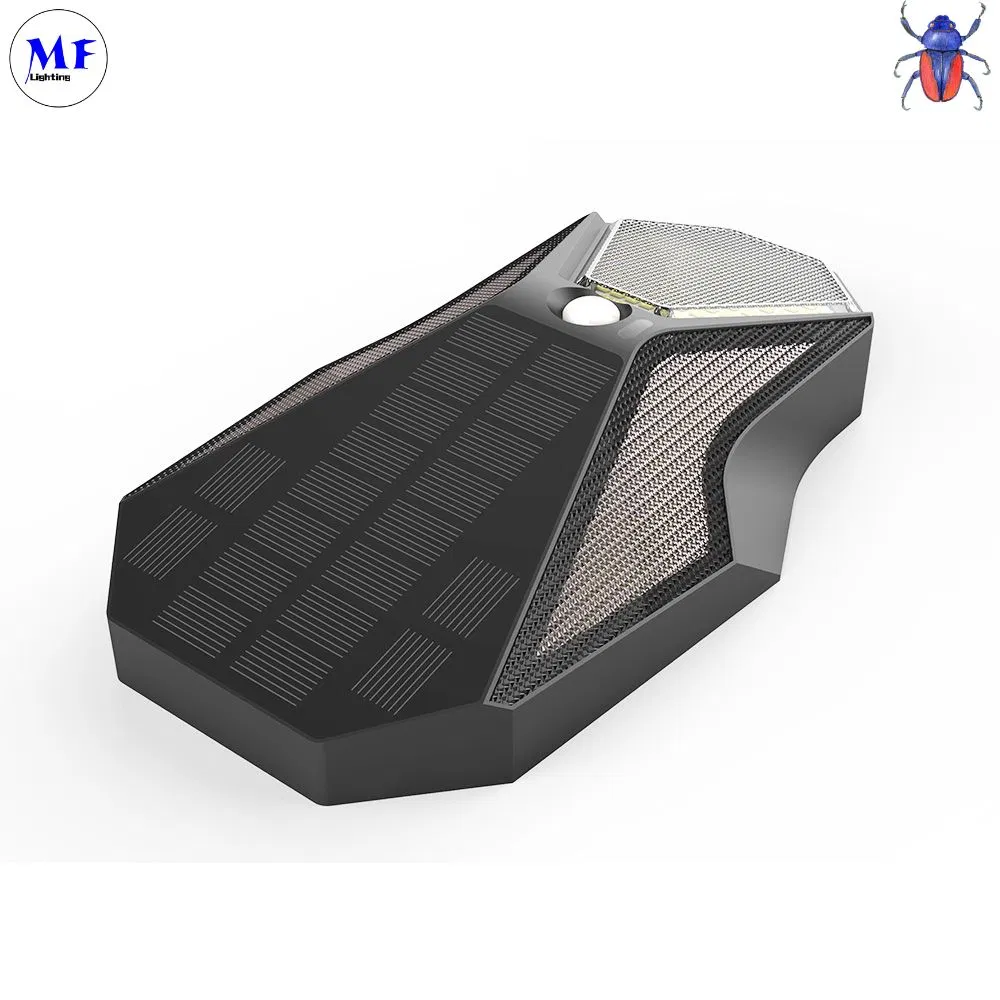

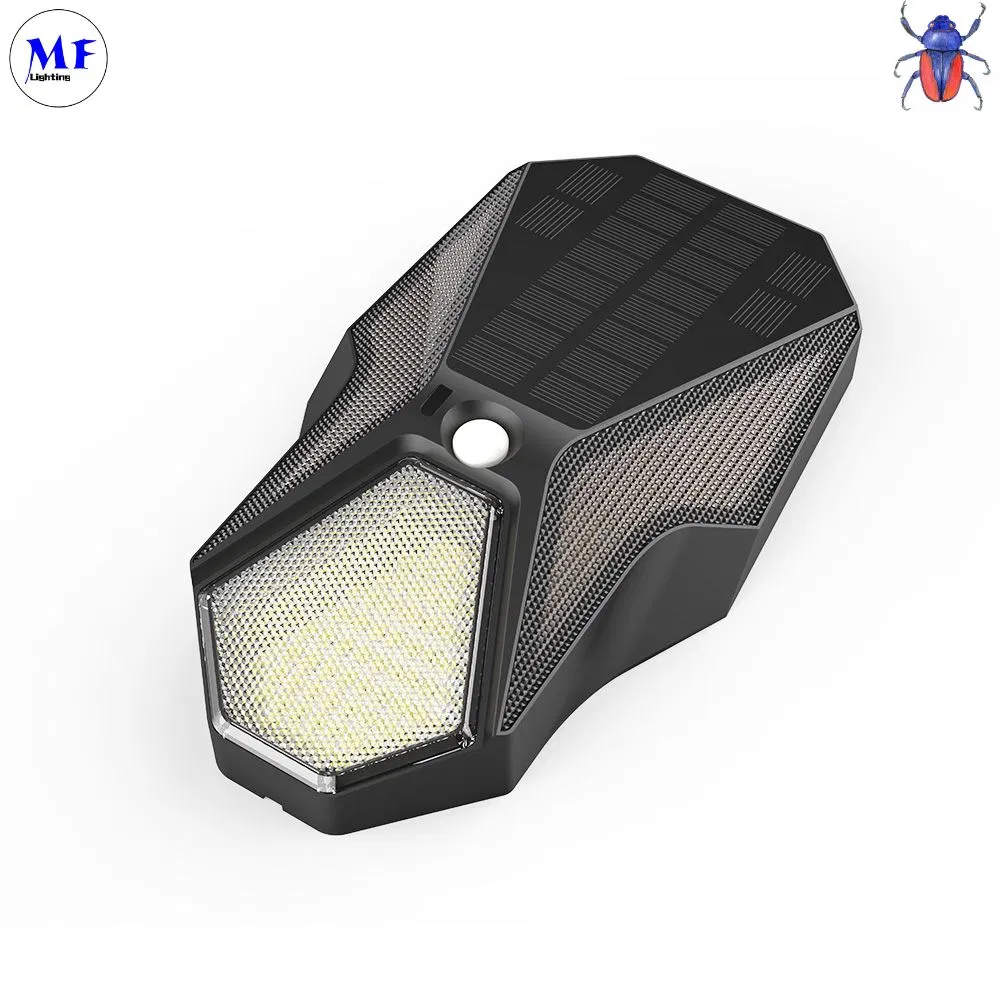

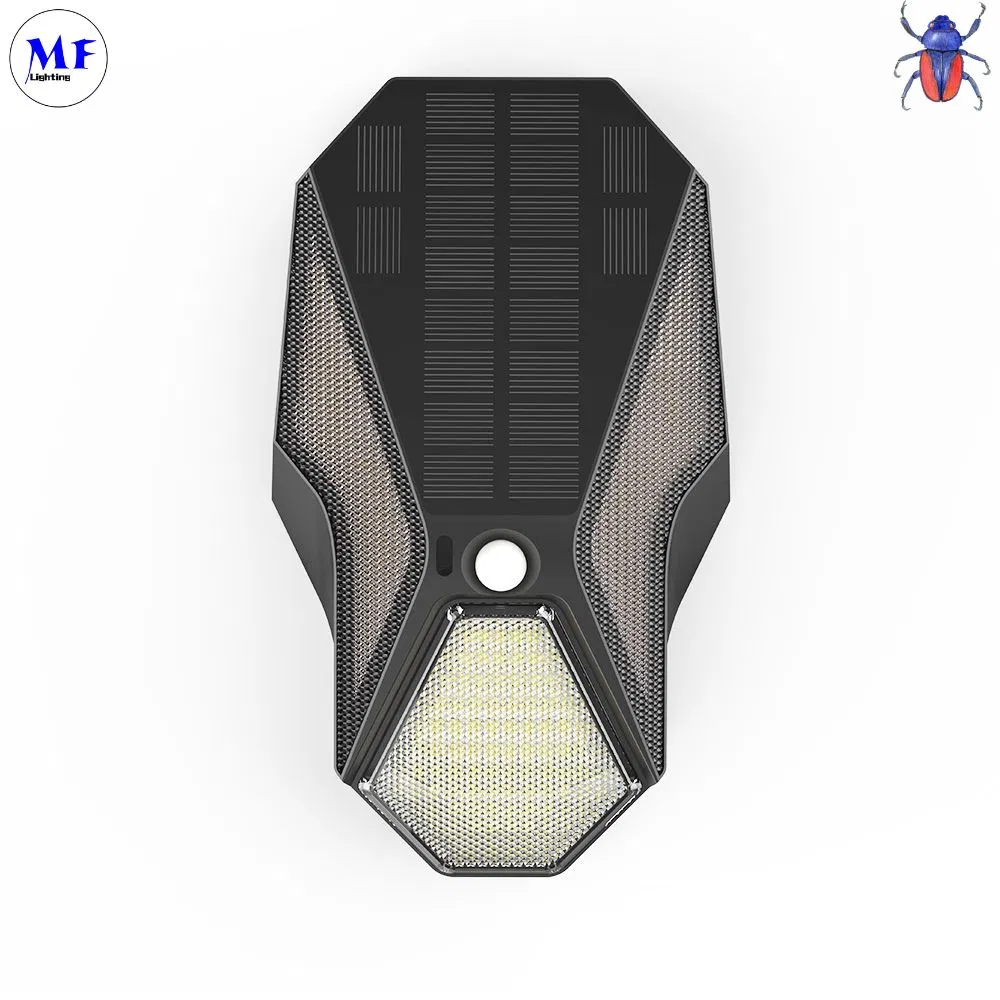

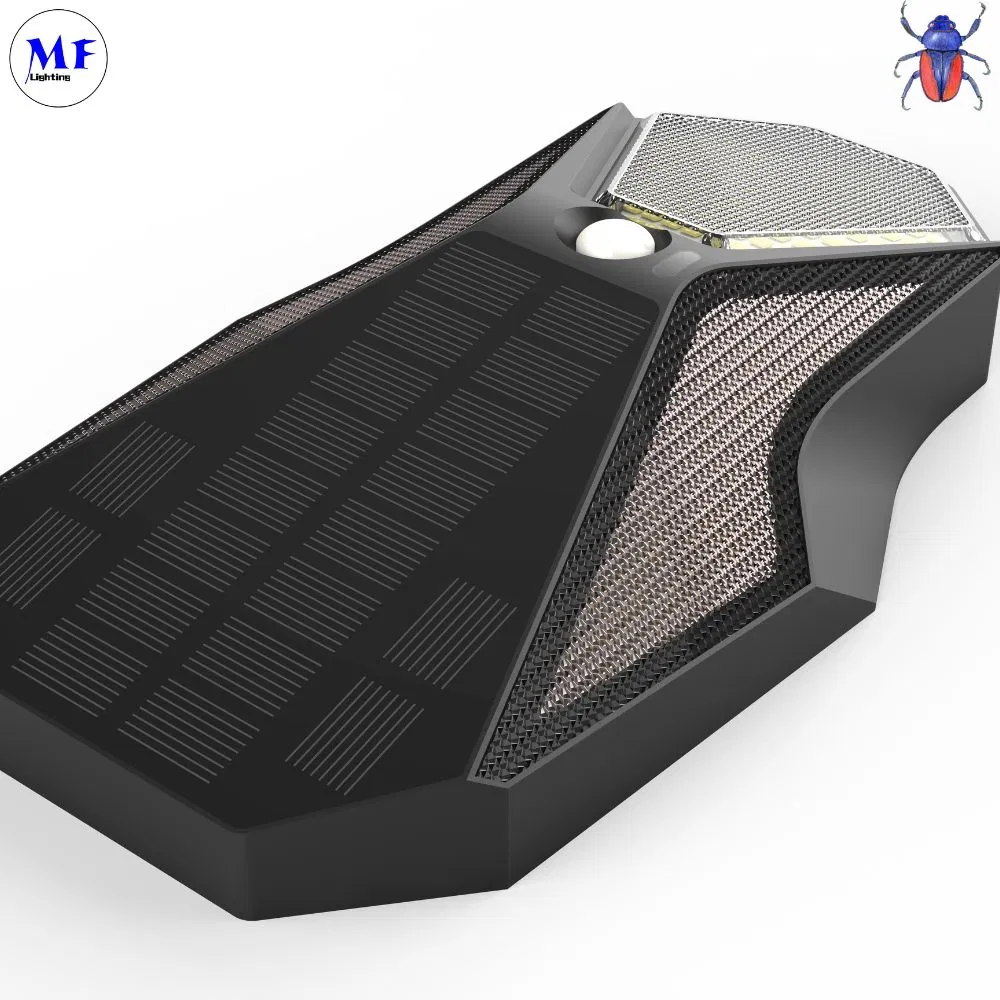

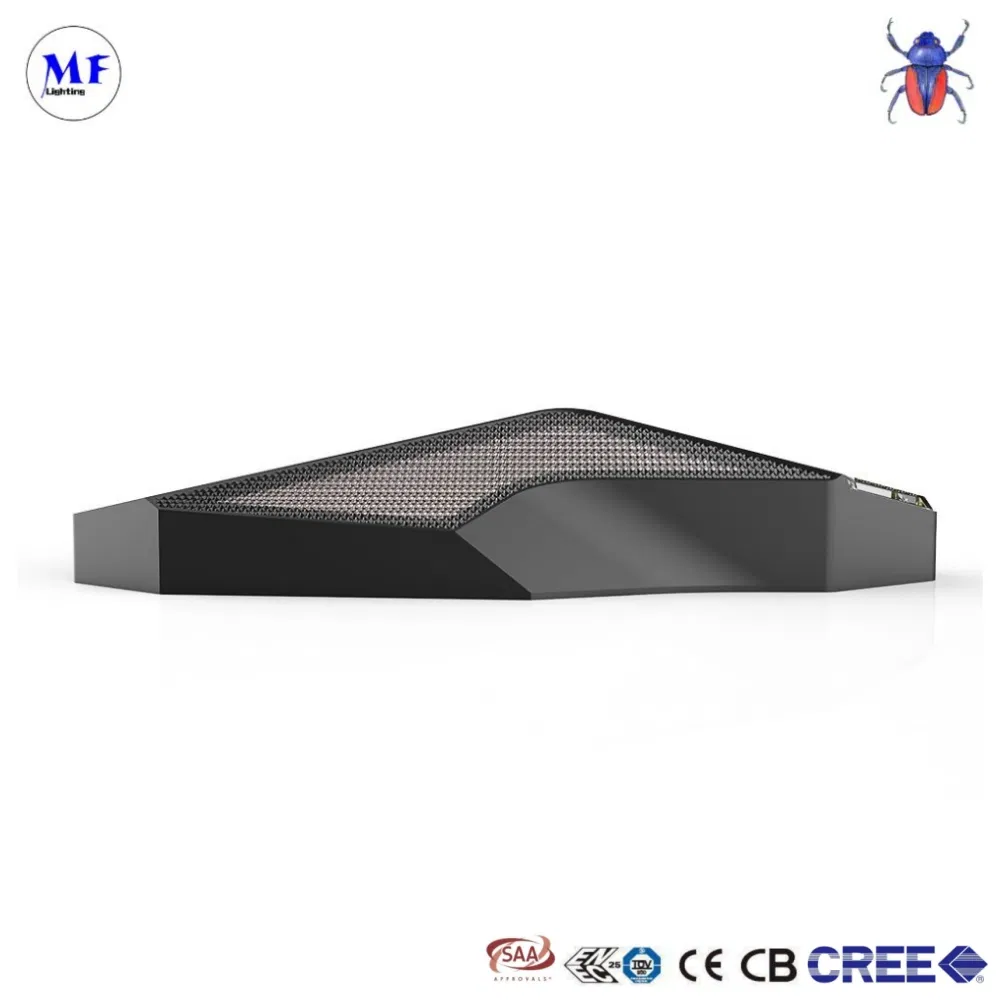

IP65 Waterproof Outdoor 3 Type Lighting Model White Warm LED Solar Wall Light with PIR Sensor for Garden Pathway Backyard Patio Front Porch Balcony Deck

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Information

Model NO.
MF Beetle Solar Wall Light
Light Source
LED Lamp
Material
ABS + Aluminum + PC
Color Temp
6500K / 3500K
Power
Main 2.0W
Illumination Time
72h
Battery
18650 3.7V 1800mAh Lithium
Charging Time
6 Hours
IP Rating
IP44 / IP65
Panel
5.5V 1.8W Monocrystalline
Size
200 * 115 * 40mm
Functions
Sensing + Light Mode
💡

Product Description

IP65 Waterproof Outdoor Solar Wall Light with PIR Sensor. Designed for garden pathways, backyards, patios, front porches, balconies, and decks. Features 3 distinct lighting models with White and Warm LED options.

Features & Design

This original design patented product provides high-quality integrated solar photovoltaic lighting. Key advantages include "No wiring, easy installation", "High charging efficiency", and "Strong battery life". The creative design is inspired by futuristic industrial visual styles, breaking through traditional outdoor lighting appearances to create a unique aesthetic experience.

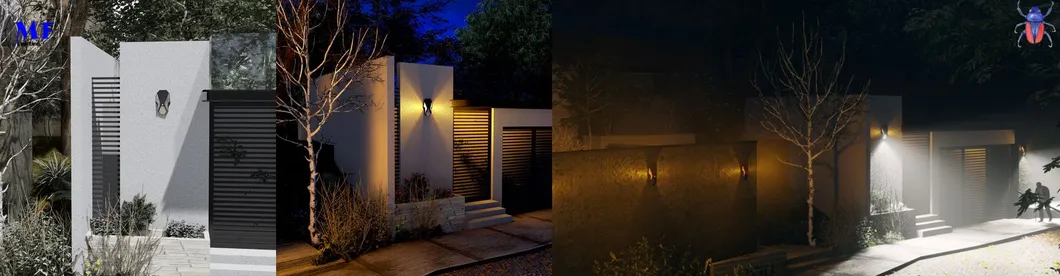

Solar Wall Light Overview

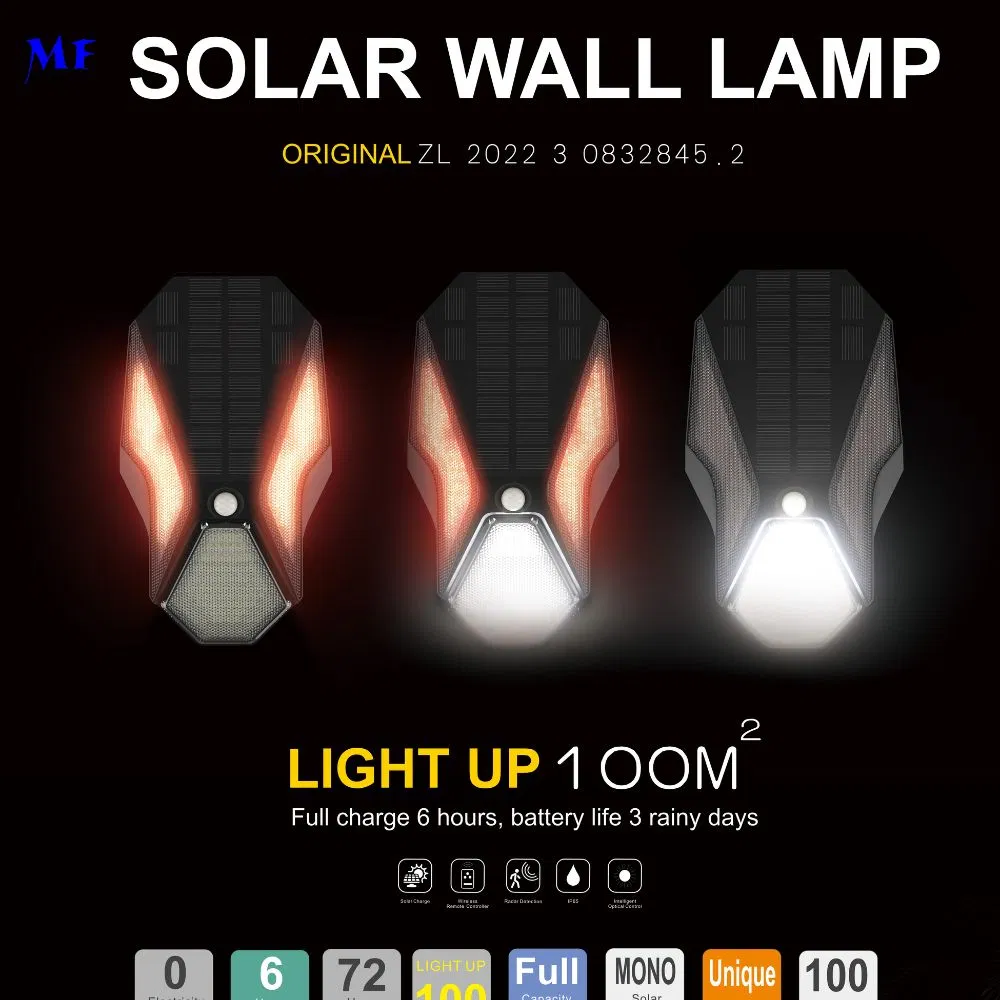

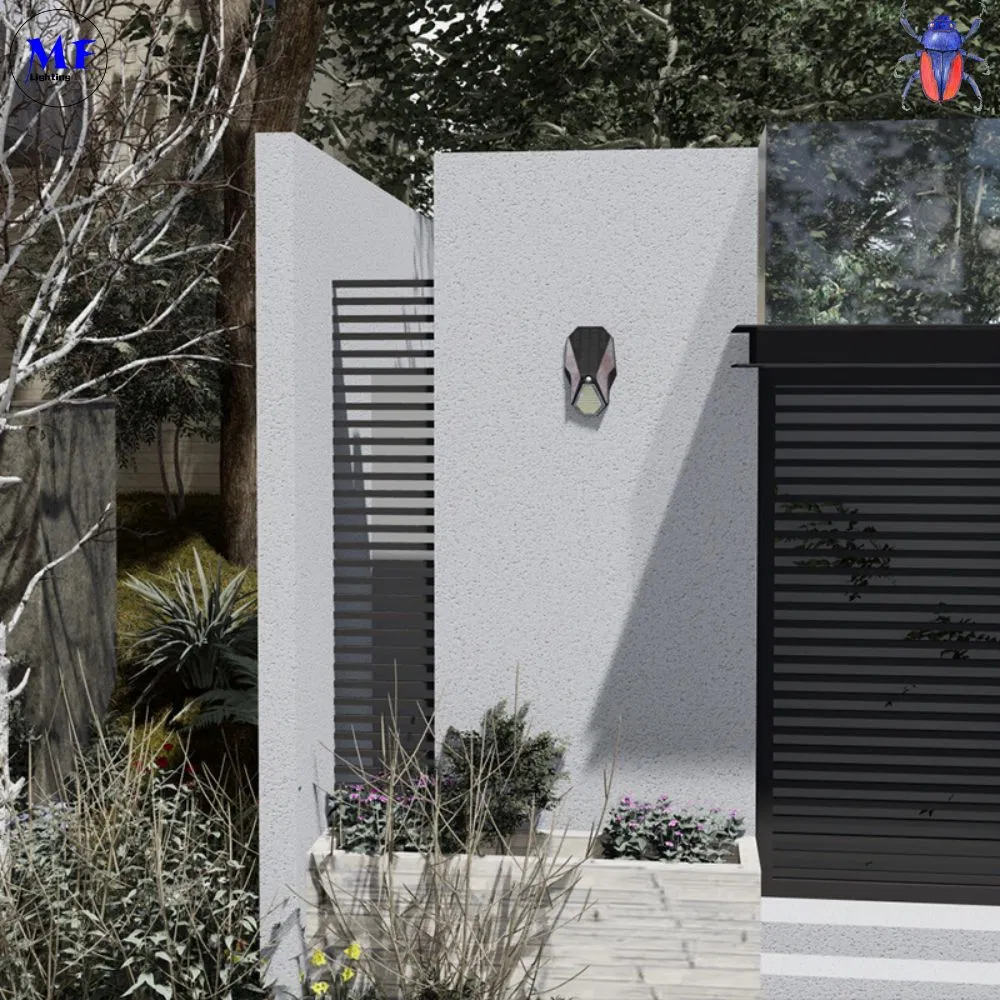

Creative Design Lighting Modes
📊

Technical Specifications

Parameter Details
Item CodeMF-B001
Battery3.7V 18650 1800mAh
Solar Panel5.5V 1.8W Monocrystalline Silicon
Luminous Flux120lm
Sensor Range3-5m Infrared Induction
Main Lamp Power2.0W (6500K White)
Sub-lamp Power0.8W (3500K Warm)
MaterialABS + Polycarbonate PC
🛠️

Detailed Photos & Installation

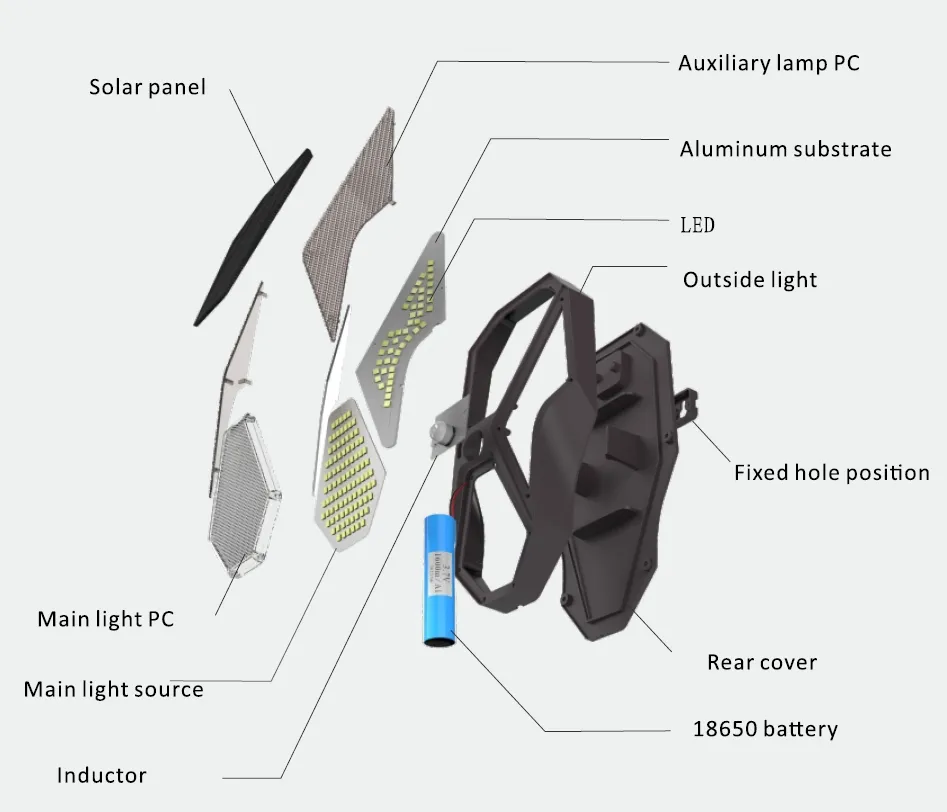

Product Details

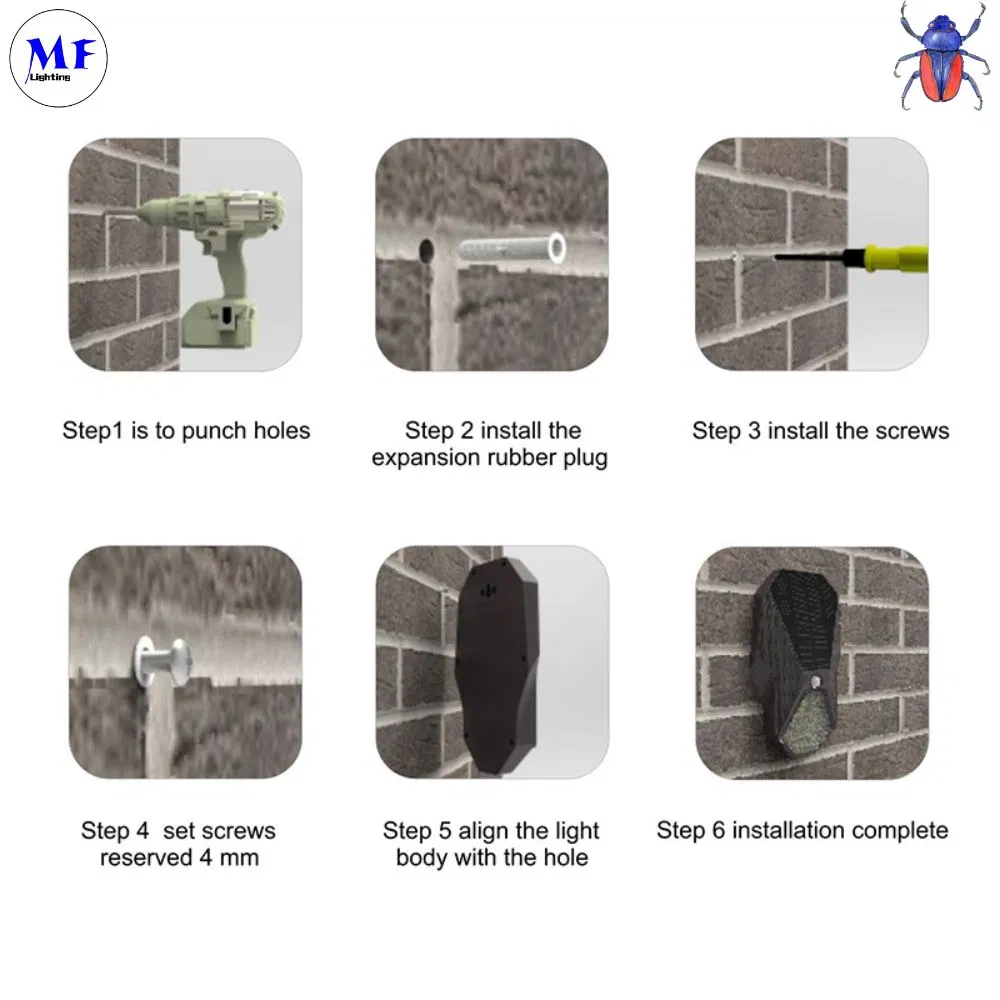

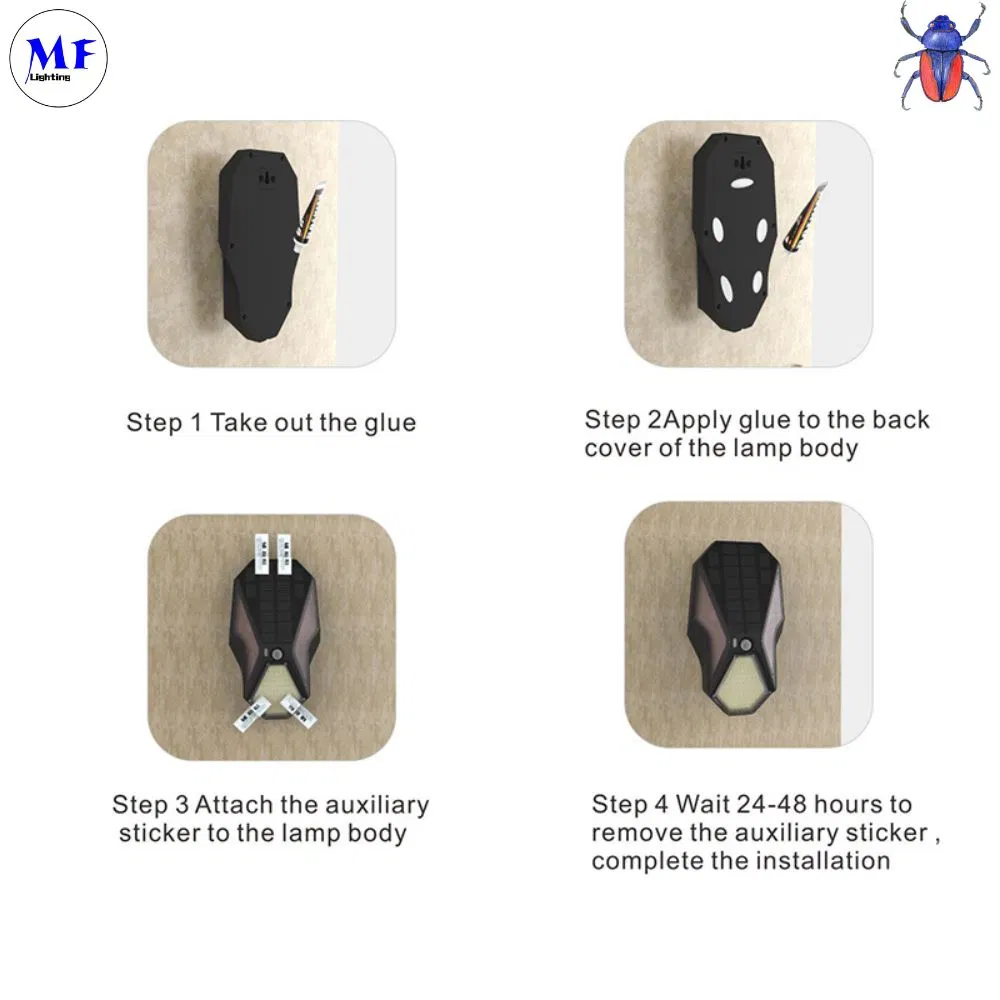

Installation 1 Installation 2
🎮

Control Modes

Default Mode: Click ON to start. Main light 100%, secondary 50%. After 30s no motion, main light turns off, secondary stays at 50% for 30s then drops to 20%.

Power Saving Mode: Double-click ON. Main light 100%, secondary 20%. After 30s no motion, main light off, secondary stays 20%. After another 30s no motion, all off.

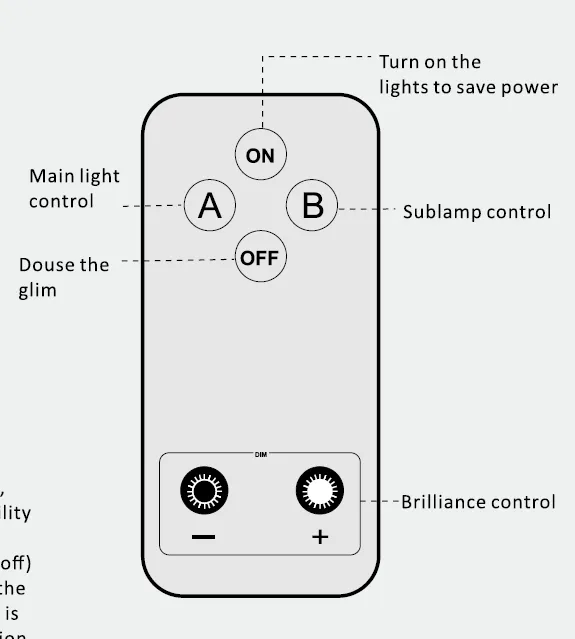

Remote Control Instructions
📏

Dimensions & Application

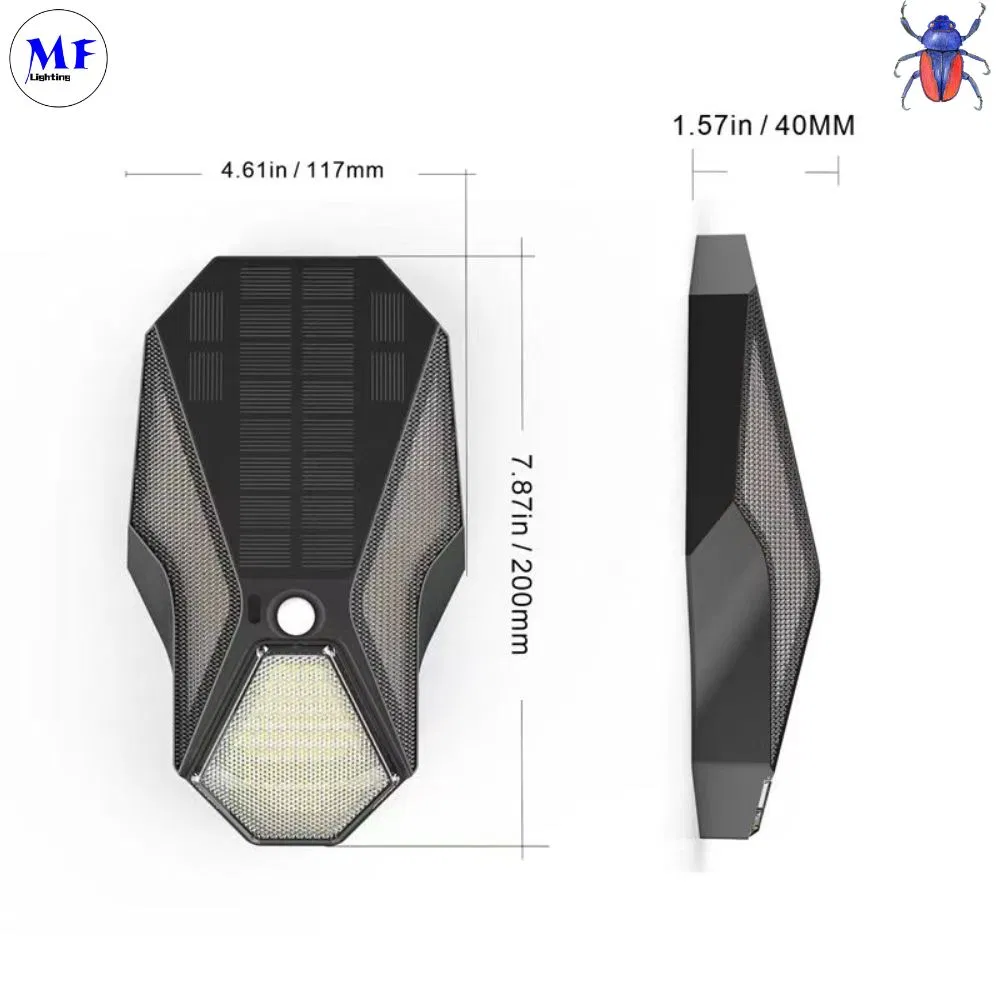

Dimensions

Ideal for outdoor illumination in pathways, gardens, and decks. These lights enhance safety and aesthetics while operating completely on solar power. They are especially useful for security purposes with integrated motion sensors and for off-grid locations like camping sites or rural areas.

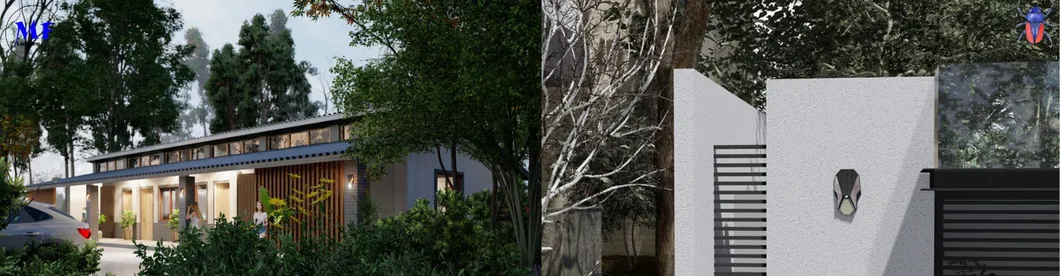

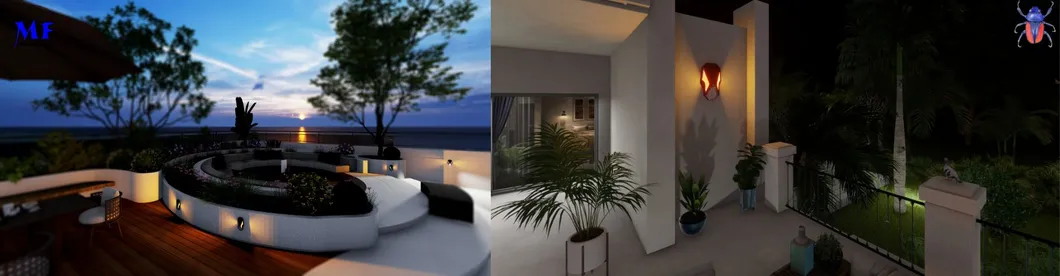

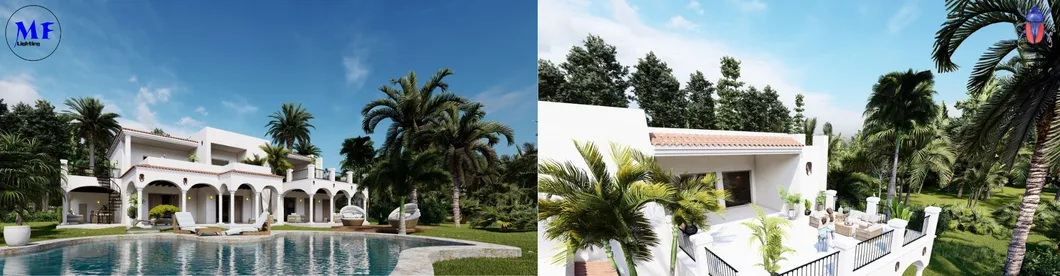

App 1 App 2 App 3

Performance & Testing

The battery adopts single-crystal cells with conversion efficiency exceeding 20%. Each component undergoes strict inspection and performance testing. Sealing materials ensure the unit can withstand long-term outdoor exposure.

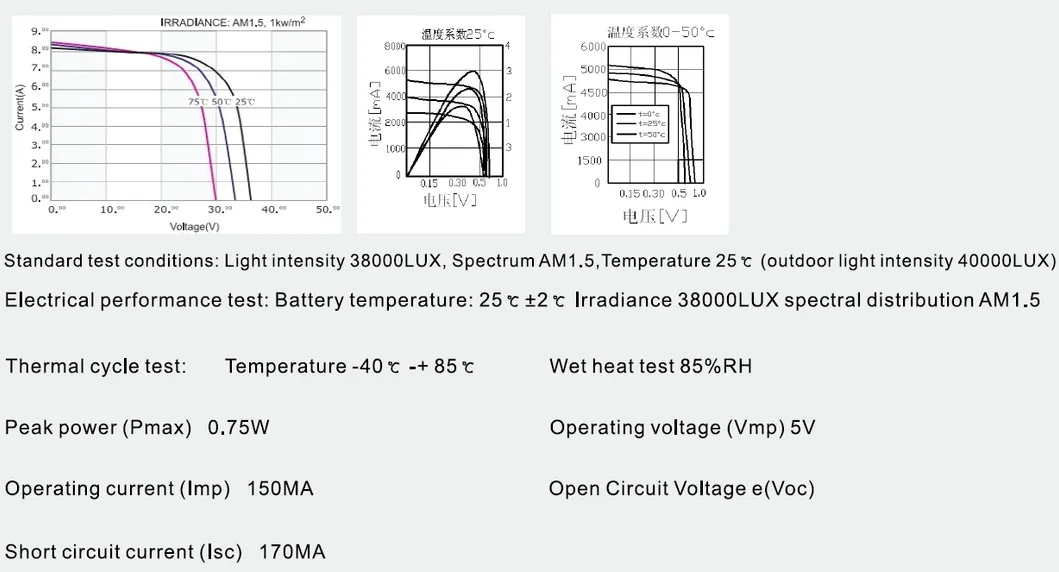

Testing Procedures

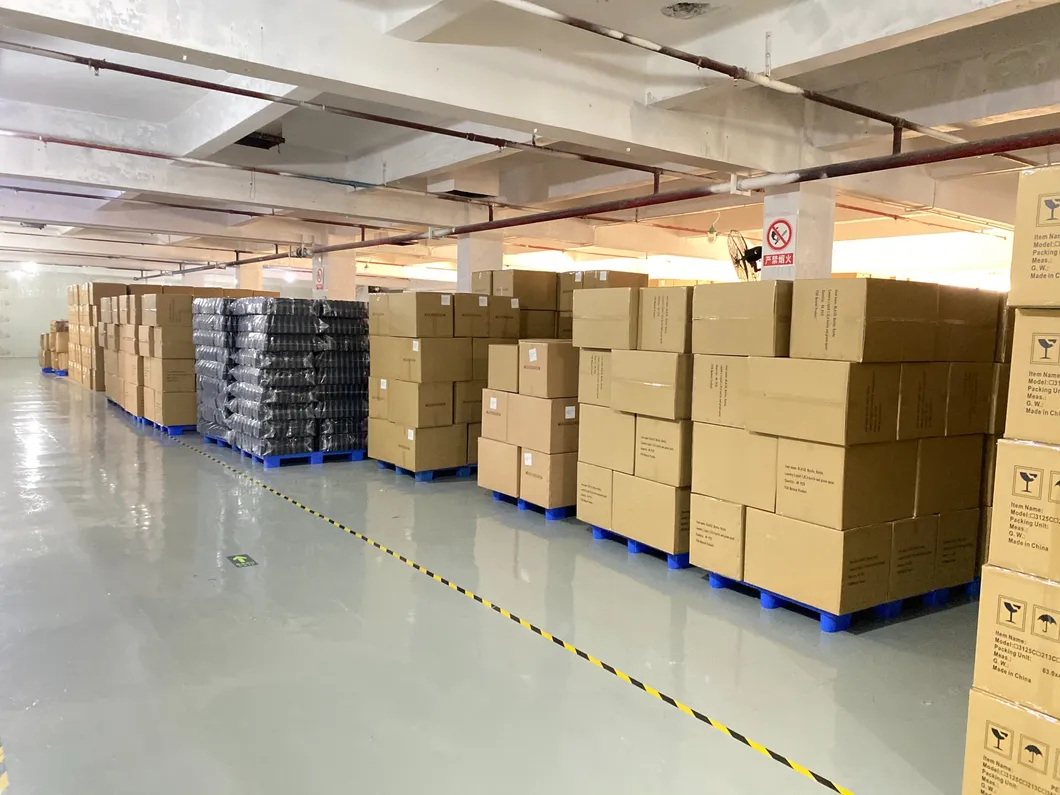

Test 1 Test 2 Test 3

Frequently Asked Questions

How many lighting modes does the Beetle Solar Wall Light have?
It features three modes: Sub-light ambient mode, full brightness induction mode, and a specific main-light illumination mode to suit different environment needs.
Is the light truly waterproof for outdoor use?
Yes, the product is rated IP44/IP65 waterproof, constructed from durable ABS and PC materials, making it suitable for gardens, patios, and pathways in various weather conditions.
How long does the battery last on a full charge?
The 1800mAh lithium battery can provide up to 72 hours of illumination and is designed to last through three consecutive rainy days.
What is the detection range of the PIR motion sensor?
The integrated PIR sensor has an infrared induction range of approximately 3 to 5 meters, automatically activating the light when movement is detected.
How long does it take to fully charge the solar panel?
Under standard sunlight conditions, the high-efficiency monocrystalline silicon panel takes about 6 hours to fully charge the battery.
What is included in the standard configuration?
The package typically includes the solar lamp, installation instructions, a remote control, necessary screws, and auxiliary mounting materials.
